OVERVIEW

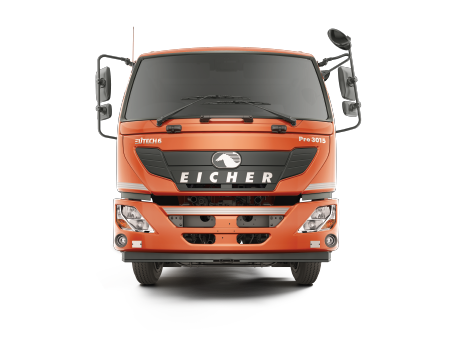

Eicher Pro 3015

Pro 3015 Redefining levels of performance & profitability to stay ahead in business with Eicher Pro 3015 with Next gen E494 engine & 7 speed gearbox.

Its revolutionary driver comfort, cutting edge technology,

  • best in class safety and reliability along with superior overall performance keep you "Stay Ahead"
Engine Power

160HP

Torque

500 Nm @ 1200-1800 rpm

Fuel Type

Diesel

SPECIFICATIONS Pro 3015
GVW (Kg) 16020
Wheelbase (mm) 4490 4490 5490 5490
Length 5811 6112 6782 7364
Width (mm) 2287
Engine E494 4V TCI BS VI (CRS Diesel Engine)
Max. Power Output 160 hp @ 2600 rpm
Max. Torque Output 500 Nm @ 1200-1800 rpm
Emission BS VI
Fuel Type Diesel
Transmission ET50S7
Gear Type 7 Speed 7 F( 2 overdrive gears) + 1 R
Clutch Dia (mm) 330
Gradeability (%) 23
Steering Tilt and telescopic standard power steering
Turning Circle Diameter (m) 17.5 17.5 21.6 21.6
Ground Clearance (mm) 258
Battery 12 V - 100 AH
Fuel Tank Capacity (L) Anti- Corrosive Composite HDPE Polymer - 190, 425
Brakes (Service) air brakes
Suspension Front- parabolic with shock absorbers
Rear - semi elliptical laminated leaves with helper spring
Tyre Size 9.00R20- 16PR
Cabin 2.1 m cockpit design sleeper cabin
Warranty 3 years/unlimited km on vehicle
4 years/unlimited km on engine and gearbox
