OVERVIEW

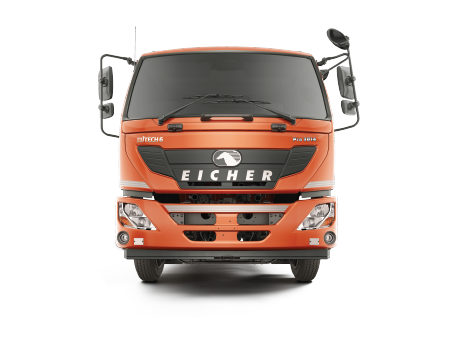

Eicher Pro 3014

Pro 3014 Redefining levels of performance & profitability to stay ahead in business with Eicher Pro 3014 with Next gen E494 engine & 7 speed gearbox.

Its revolutionary driver comfort, cutting edge technology,

  • best in class safety and reliability along with superior overall performance keep you "Stay Ahead"
Engine Power

160HP

Torque

500 Nm @ 1200-1800 rpm

Fuel Type

Diesel

Specifications Pro 3014
GVW (Kg) 14052
Wheelbase (mm) 4550 4550 5550 5550
Length 5804 6101 6777 7360
Width (mm) 2125 2125 2287 2287
Engine E494 4V TCI BS VI (CRS Diesel Engine)
Max. Power Output 160 hp @ 2600 rpm
Max. Torque Output 500 Nm @ 1200-1800 rpm
Emission BSVI
Fuel Type Diesel
Transmission ET50S7
Gear Type 7 Speed 7F( 2 overdrive gears) + 1R
Clutch Dia (mm) 330
Gradeability (%) 25
Steering hydraulic assisted power assisted
Turning Circle Diameter (m) 17.2 17.2 21 21
Ground Clearance (mm) 220
Battery 12V - 100AH
Fuel Tank Capacity 190 Ltrs (Anti- Corrosive Composite HDPE Polymer), 425 Ltrs (7360 mm)
Brakes (Service) pnematic assisted
Suspension Front - parabolic with shock absorbers
Rear - semi elliptical laminated leaves with helper spring
Tyre Size 8.25R20
Cabin 2.1m sleeper cabin
Warranty 3 years/unlimited km on vehicle
4 years/unlimited km on engine and gearbox
Additional Feature 10T Hydraulic Jack
