OVERVIEW

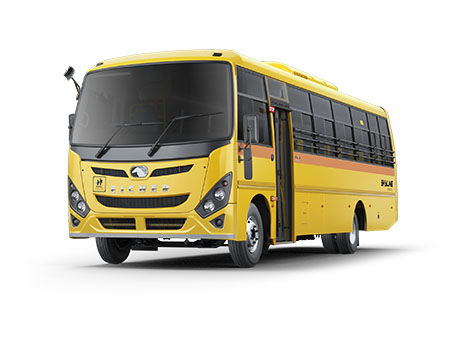

Starline School Bus

STARLINE 2090 L The all new Starline is designed to deliver best in class operating economics with higher safety. Comfort for the young leaders.

uperior fuel efficiency coupled with lower maintenance costs leads to high profitability

  • TThe modern driveline is complemented
  • By contemporary design by way of uni-tone front Pegasus looks and refreshed interiors.
Engine Power

140 HP(105kw) @ 3200 rpm

Seating Capacity

42 + D + d 2x2

Torque

400Nm@1200-2500 rpm

Fuel Type

Diesel

SPECIFICATIONS 2090 L
Seating Capacity 2X2 41+CD+D
Seating Capacity 3X2 50+CD+D
Wheelbase (mm) 5240
Overall length (mm) 9584
Overall width (mm) 2164
Overall height (mm) 2860
Front overhang (mm) 1200
Rear overhang (mm) 3144
Turning circle diameter (m) 19.4
Engine  E474
Displacement (cc) 2960
Power 140 hp (105 kW) @ 3200 rpm
Torque  400 Nm @ 1200 – 2500 rpm
Clutch diameter (mm) 310
Transmission ET35S6
Transmission type  Synchromesh (6SPeed+1Rev)
GVW (Tonnes) 9.8
Chassis frame  Domex® 650
Chassis C frame dimensions  (mm) 200X65X5
Fuel tank capacity (l) 160
Brakes  Dual Circuit 'S' Cam Full Air brakes
Tyres 8.25x16 - 16 PR
Suspension - front Semi elliptic
Suspension - rear Semi elliptic
Steering  Power steering
Battery  12V 130Ah
Alternator 110A
Floor type Button type Vinyl
DEF tank capacity (l) 20
